Vidaflex AGS 942

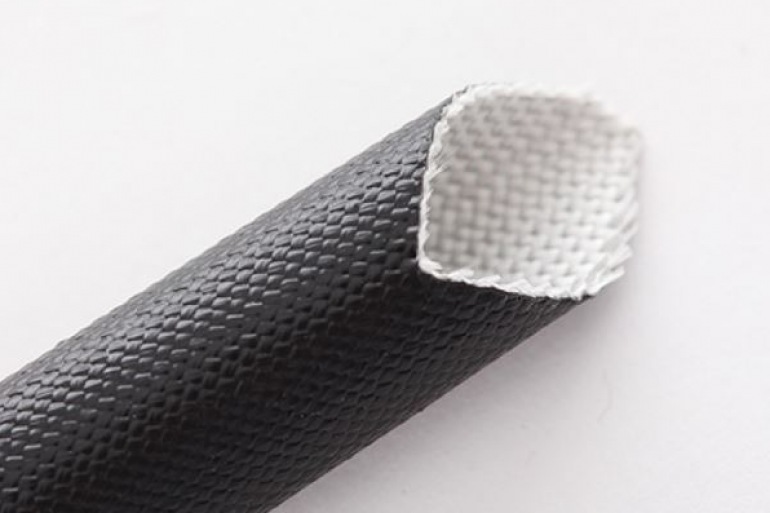

VIDAFLEX AGS 942 is manufactured from braided 'E' glass yarn coated with formulated acrylic resins.

Features

  • Resistance to abrasion
  • Range 1.0 - 25.0mm
  • Operation Temperature -20°C to 155°C
  • Maximum short term temperature 200°C
  • 2.5kV electrical strength (at 20°C)
  • Excellent flexibility
  • Mechanical strength
  • Class F

Applications

  • Automotive
  • Domestic appliances
  • Motors
  • Transformers
  • Other industrial applications

 Acrylic glass sleeving

Choose Diameter

1mm 2mm 3mm 4mm 5mm 6mm 7mm 8mm 10mm 12mm 14mm 15mm 16mm 18mm 20mm 22mm 24mm 25mm

Choose Colour

Choose Length

1m

Quantity:

Price:

£ 3.50 exc VAT
Operation Temperature
-20°C to 155°C
Electrical Strength
2.5kv for 1min
Thermal Classification
Class F (155°C)
Max short term temperature
200°C
IEC
684-3-404
NEMA VS-1
Type 6 - Grade C1
